Comfort and Style On Every Mile Covered

IVM Shuttle is a 3-row short mini-van that comes in two variants; Standard and Ambulance. It is designed to provide the ruggedness of an MPV whether as a cargo, passenger or ambulance variant.

7 or 11 Seater /1.25L/ 5 Speed Manual

The IVM 7 Seater bus is designed with passengers in mind as it offers a high sitting position and cargo space. It also offers excellent modern features like multimedia systems that would make your journey a memorable one.

Appearance

  • Energy absorption bumper
  • Five-spoke aluminium alloy rim
  • Titanium silver steel wheel rim cover
  • High strength steel wheel rim
  • Crystal headlamp (with 5-level electric regulation)
  • Direct-pull door handle
  • Highlight chrome plated trim strip at the trail
  • Black firm trim of B/C column for business
  • Crystal rearview mirrow (12 efficient LED side turn signal lamps with low consumption)
  • Front fog lamp with high penetrability
  • Combination tail lamp (including two backup lamps and rear fog lamps
  • High mounted brake lamp (5 highlight lamps)
  • Theft- deterrent steering lock system
  • Collapsible steering column
  • Theft- deterrent alarm
  • Seat belt

Comfortable system

  • EPS- electric power steering
  • Anti-dazzle double-barrel instrument in bright silver
  • Efficient vehicle-mounted front/rear A/C system
  • Electric window of front door
  • Driver/front passenger sun visor (with bill fold and make-up mirror)
  • Electric EQ stereo (radio +Auxin+USB+MP3
  • Manual rear view mirror,
  • Remote control lock,
  • Fully air conditional with rear vents,
  • Multimedia system and leather seat

Trim and Seat

  • Luxurious trim
  • Four-spoke composite pattern steering wheel
  • Front armrest trim plate in bright silver



Chassis System

  • Front/Rear Suspension- Macpherson Independent Suspension/ Leaf Spring Integrated Suspension (5 steel leaves)
  • Braking Type – Front disc and rear drum, double-loop hydraulic, vacuum servo
  • Tyre model- 175/70 R14 LT
  • ABS

Engine SPECIFICATIONS

  • Engine – 1.25L Petrol Engine
  • Displacement (ml)- 1249
  • Rated Power- (km/rpm)- 67/6000
  • Maximum Torgue- (N.m/rpm)- 118/4000
  • Fuel – Gasoline
  • Transmission – 5MT



Basic Parameters

  • Weight- (Curb weight- kg)- 1180
  • Gross Weight (kg)- 1850
  • Overall Length  (mm) 4071
  • Overall width  (mm) 1677
  • overall height (mm) 1902
  • Model name – Innoson 5380

seats- 7 and 10

Design

The IVM 7 Seater bus is designed with passengers in mind as it offers a high sitting position and cargo space. It also offers excellent modern features like multimedia systems that would make your journey a memorable one.

Appearance

  • Energy absorption bumper
  • Five-spoke aluminium alloy rim
  • Titanium silver steel wheel rim cover
  • High strength steel wheel rim
  • Crystal headlamp (with 5-level electric regulation)
  • Direct-pull door handle
  • Highlight chrome plated trim strip at the trail
  • Black firm trim of B/C column for business
  • Crystal rearview mirrow (12 efficient LED side turn signal lamps with low consumption)
  • Front fog lamp with high penetrability
  • Combination tail lamp (including two backup lamps and rear fog lamps
  • High mounted brake lamp (5 highlight lamps)
  • Theft- deterrent steering lock system
  • Collapsible steering column
  • Theft- deterrent alarm
  • Seat belt
Technology

Comfortable system

  • EPS- electric power steering

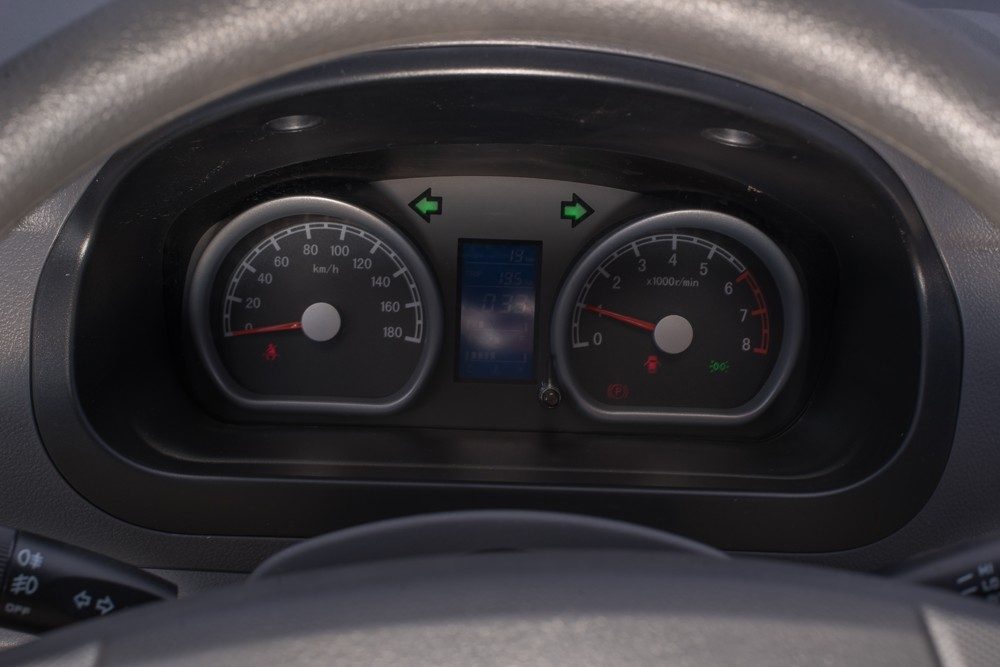

  • Anti-dazzle double-barrel instrument in bright silver
  • Efficient vehicle-mounted front/rear A/C system
  • Electric window of front door
  • Driver/front passenger sun visor (with bill fold and make-up mirror)
  • Electric EQ stereo (radio +Auxin+USB+MP3
  • Manual rear view mirror,
  • Remote control lock,
  • Fully air conditional with rear vents,
  • Multimedia system and leather seat

Trim and Seat

  • Luxurious trim
  • Four-spoke composite pattern steering wheel
  • Front armrest trim plate in bright silver



Chassis System

  • Front/Rear Suspension- Macpherson Independent Suspension/ Leaf Spring Integrated Suspension (5 steel leaves)
  • Braking Type – Front disc and rear drum, double-loop hydraulic, vacuum servo
  • Tyre model- 175/70 R14 LT
  • ABS
Specifications

Engine SPECIFICATIONS

  • Engine – 1.25L Petrol Engine
  • Displacement (ml)- 1249
  • Rated Power- (km/rpm)- 67/6000
  • Maximum Torgue- (N.m/rpm)- 118/4000
  • Fuel – Gasoline
  • Transmission – 5MT



Basic Parameters

  • Weight- (Curb weight- kg)- 1180
  • Gross Weight (kg)- 1850
  • Overall Length  (mm) 4071
  • Overall width  (mm) 1677
  • overall height (mm) 1902
  • Model name – Innoson 5380

seats- 7 and 10
