The Lion of African Roads

High fuel economy, reliably safety, comfortable driving experience and a dynamic and glamorous design

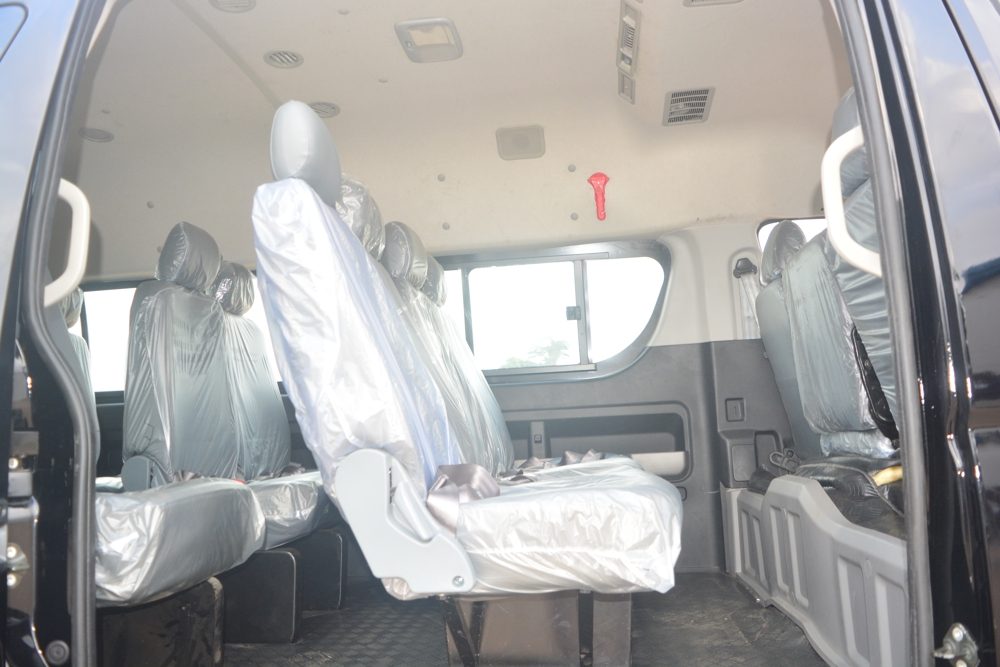

The IVM 6540 is safely constructed with a spacious and generous interior creating a comfortable and tranquil space for business affairs.

Manual / 16+1 Seats / Passenger or Ambulance

Headlights: Its unique headlight can radiate brightness of 30,000 lumens, 1.5 times higher than other minivans. Its farther and wider radiance ensures driving safety.

Taillights: Braking lights and backup lights mounted on the tail door have pleasant look.

Front headlight: Eagle-eye diamond headlights are unique and brilliant, well match with the overall style. The light cover with diamond-like material and high reflection material makes stronger light radiation.

Front grille: Honeycomb central network combined with water tank guarantees good ventilation and cooling effect. The hollow grille in proper size mounted well on the front face is very eye-catching.

Front fog lamps: Good warning for cars ahead in rainy, foggy, or night hours.

Central console: The layout of the central console is reasonable. The overall style is magnificent. The buttons and knobs are placed sequentially and easy to operate.

Steering wheel: The two-spoke steering wheel has a comfortable feel with up/down adjustable function, which can assure the driver a comfortable driving position.

  • Engine: it uses a Japan Technology- 3RZ (2.7L) engine. Its Compression ratio is 9.5 to 1. Output is 150 hp (112 kW) at 4800 RPM with 177 lb·ft (240 N·m) of torque at 4000 RPM, Bore is 95 mm and stroke is 95 mm. This engine features twin, chain-driven balance shafts. It has four valves per cylinder and DOHC. Valve adjustment is by shim over bucket.
  • 5MT Transmission: The five-speed manual transmission shows strong acceleration and stable performance and power delivery, highly matched with the engine
  • Firm chassis: Truck-style solid chassis design: two side members and eight cross members design makes a breakthrough from other traditional mini-car chassis. The thickness of the side member is up to 2mm which increases carrying capacity.
  • Front Suspension: The bus suspension improves driving comfort. The 12mm diameter cylindrical spring and two-way cylindrical shock absorber improves shock absorbing and loading capacity.
  • Rear suspension: Five thickened steel plates as rigid axle suspension, two-way cylindrical damper greatly enhanced the driving comfort and absorbing capacity. Size of each steel board (width × thick): 60mm x 7mm.
  • Wide cargo carrying tyre: It applies strong bearing capacity steel rims and the small steel cover is beautiful; It is equipped with 175/65 R14 to / 165R13C special light truck tyres, thus it has not only super-carrying capacity but also improved tyre grip.
  • Dimension(mm)- 5380×1880×2285
  • Wheelbase (mm)- 3720
  • The number of seats -17+21 (Long frame)
  • Engine Model – Japan Technology- 3RZ (2.7L)
  • Engine Capacity – 2.7L
  • Steering – Power
  • Calibration Power (Kw) – 110
  • Exhaust standard – Euro III with Catalisator
  • Fuel – Petrol
  • Brake System – Front Disc/Rear Drum
  • Brake Type – ABS EBD
  • Door Arrangement- 4 Doors, Central Control Door Lock
  • Seat Capacity- Up to 15
  • Exhaust standard- Euro II with Catalisator
  • Fuel tank capacity- 75
  • Gearbox 5-speed manual transmission
  • Other features A/C, Power window, Central lock, Radio/ cassette player/ USB etc
Design

Headlights: Its unique headlight can radiate brightness of 30,000 lumens, 1.5 times higher than other minivans. Its farther and wider radiance ensures driving safety.

Taillights: Braking lights and backup lights mounted on the tail door have pleasant look.

Front headlight: Eagle-eye diamond headlights are unique and brilliant, well match with the overall style. The light cover with diamond-like material and high reflection material makes stronger light radiation.

Front grille: Honeycomb central network combined with water tank guarantees good ventilation and cooling effect. The hollow grille in proper size mounted well on the front face is very eye-catching.

Front fog lamps: Good warning for cars ahead in rainy, foggy, or night hours.

Central console: The layout of the central console is reasonable. The overall style is magnificent. The buttons and knobs are placed sequentially and easy to operate.

Steering wheel: The two-spoke steering wheel has a comfortable feel with up/down adjustable function, which can assure the driver a comfortable driving position.

Technology
  • Engine: it uses a Japan Technology- 3RZ (2.7L) engine. Its Compression ratio is 9.5 to 1. Output is 150 hp (112 kW) at 4800 RPM with 177 lb·ft (240 N·m) of torque at 4000 RPM, Bore is 95 mm and stroke is 95 mm. This engine features twin, chain-driven balance shafts. It has four valves per cylinder and DOHC. Valve adjustment is by shim over bucket.
  • 5MT Transmission: The five-speed manual transmission shows strong acceleration and stable performance and power delivery, highly matched with the engine
  • Firm chassis: Truck-style solid chassis design: two side members and eight cross members design makes a breakthrough from other traditional mini-car chassis. The thickness of the side member is up to 2mm which increases carrying capacity.
  • Front Suspension: The bus suspension improves driving comfort. The 12mm diameter cylindrical spring and two-way cylindrical shock absorber improves shock absorbing and loading capacity.
  • Rear suspension: Five thickened steel plates as rigid axle suspension, two-way cylindrical damper greatly enhanced the driving comfort and absorbing capacity. Size of each steel board (width × thick): 60mm x 7mm.
  • Wide cargo carrying tyre: It applies strong bearing capacity steel rims and the small steel cover is beautiful; It is equipped with 175/65 R14 to / 165R13C special light truck tyres, thus it has not only super-carrying capacity but also improved tyre grip.
Specifications
  • Dimension(mm)- 5380×1880×2285
  • Wheelbase (mm)- 3720
  • The number of seats -17+21 (Long frame)
  • Engine Model – Japan Technology- 3RZ (2.7L)
  • Engine Capacity – 2.7L
  • Steering – Power
  • Calibration Power (Kw) – 110
  • Exhaust standard – Euro III with Catalisator
  • Fuel – Petrol
  • Brake System – Front Disc/Rear Drum
  • Brake Type – ABS EBD
  • Door Arrangement- 4 Doors, Central Control Door Lock
  • Seat Capacity- Up to 15
  • Exhaust standard- Euro II with Catalisator
  • Fuel tank capacity- 75
  • Gearbox 5-speed manual transmission
  • Other features A/C, Power window, Central lock, Radio/ cassette player/ USB etc
